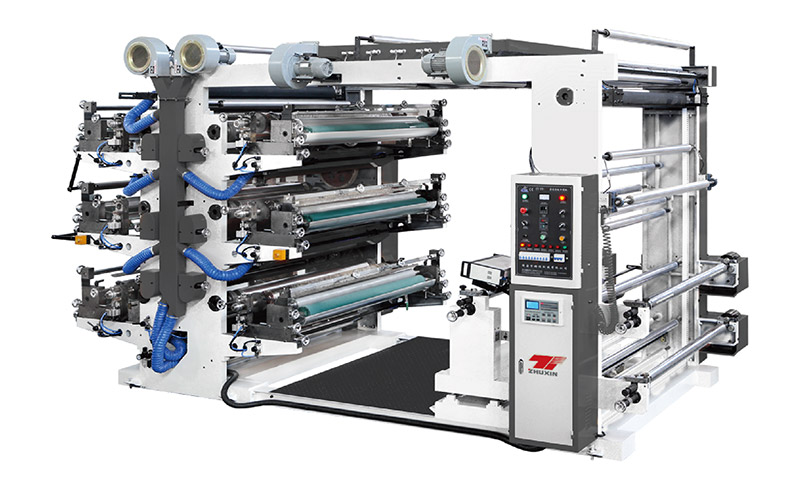

6 Colors Flexo Printing Machine

Q: How do I reduce make‑ready time when changing jobs on my 6 Colors Flexo Printing Machine?

Make‑ready on a 6 Colors Flexo Printing Machine can take 45–90 minutes if done manually. To cut it to under 20 minutes: (1) Use quick‑lock plate cylinders and pre‑mounted plates with register marks. (2) Install digital pressure gauges that store settings for each job. (3) Buy a second set of anilox sleeves and ink chambers for quick swap. (4) Create a job recipe book with all parameters (tension, speed, drying temp). (5) Train operators to stage the next job‘s materials during the current run. Some printers achieve 15‑minute changeover on six‑color presses, boosting daily output by 30% without adding shifts.

Q: My 6 Colors Flexo Printing Machine prints the second color slightly stretched compared to the first. Why?

Stretch or elongation of the second color on a 6 Colors Flexo Printing Machine is usually caused by excessive web tension between the six printing decks. The substrate (especially film) gets pulled and expands before the second impression, making the second image longer. Reduce the inter‑station tension to less than 1.5 N/mm for films. Also check that the nip rollers between decks are synchronized – speed mismatch as low as 0.5% will stretch prints. Install a dancer roller with tension feedback. For paper, ensure moisture content is uniform (6–8%) because wet paper stretches under heat. Correcting tension can reduce stretch from 2% to under 0.3%.

Q: How do I choose the right anilox roller line count for my 6 Colors Flexo Printing Machine?

Choosing anilox for a 6 Colors Flexo Printing Machine depends on the job: for solid blocks and large text, use 200–300 lpi with 4–6 BCM volume. For fine text (4 pt) and halftones (up to 120 lpi screen), use 400–500 lpi with 1.8–2.5 BCM. A common mistake is using the same anilox for both colors – instead, put the finer anilox on the color that needs detail, and the coarser one on the solid background. Running a 400 lpi anilox on both decks is safe for general work. Always buy anilox rollers with a ceramic coating and at least 30% cell volume reserve. Test combinations with a step wedge before production.

Q: Why does my 6 Colors Flexo Printing Machine suddenly stop with a "nip pressure out of range" alarm?

On a 6 Colors Flexo Printing Machine, a nip pressure alarm means the pressure between the plate cylinder and impression cylinder exceeded the safe limit (typically >200 N/cm). Causes: (1) Debris or dried ink stuck between cylinders, (2) Worn pressure actuator feedback sensor, (3) Operator entered wrong pressure value. Immediately stop and manually retract the cylinders. Clean both cylinder surfaces with a soft cloth and isopropyl alcohol. Check the pressure sensor calibration using a force gauge. If the alarm persists, the pressure control valve may be stuck – clean or replace it. Running with excessive pressure damages plates and bearings, so never override the alarm without inspection.

Q: Can a 6 Colors Flexo Printing Machine handle double‑sided printing in one pass?

Most standard 6 Colors Flexo Printing Machines print only one side because both decks are on the same side of the web. To print six sides in one pass, you need a turn bar system or a "perfecting" configuration where the web flips between decks. Some six‑color presses offer an optional reversing unit that flips the substrate after the first color, then prints the second color on the reverse side. However, this increases web path length and tension variation. For high‑volume double‑sided work (e.g., labels or bags), it‘s cheaper to run the web twice or invest in a 4‑color press with dedicated front/back decks. But with careful setup, a modified six‑color press can achieve duplex printing at reduced speed (80–100 m/min).
