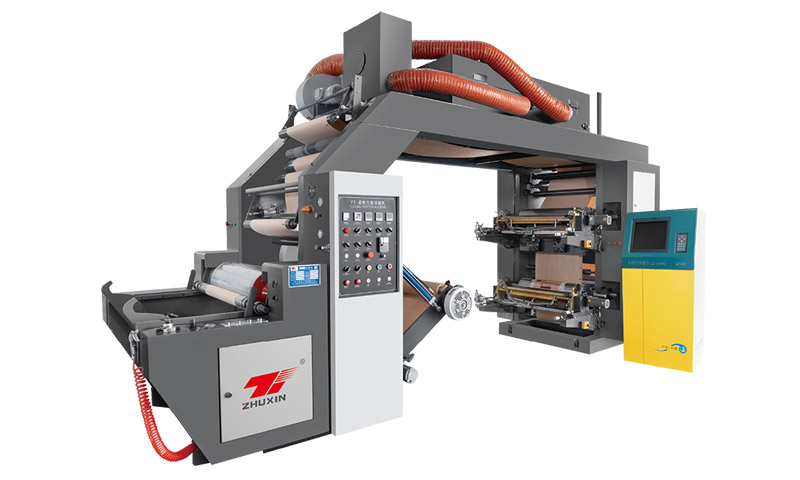

4 Colors High Speed Flexo Printing Machine

Q: How do I clean the printing unit of my 4 Colors High Speed Flexo Printing Machine in less time?

To slash cleaning time on a 4 Colors High Speed Flexo Printing Machine, invest in an automatic wash-up system with recirculating solvent/water and rotating brushes. This can reduce cleaning from 45 minutes to 8–10 minutes per color deck. For manual cleaning, use quick-release doctor blade chambers and sleeve-type anilox rollers – pull them out and soak in a ultrasonic tank while wiping the plate cylinder. Always run a cleaning "puck" or dummy plate to scrub the anilox cells. A clean press also prevents ghosting and extends blade life.

Q: My 4 Colors High Speed Flexo Printing Machine produces uneven ink density across the web width. Why?

Uneven density on a 4 Colors High Speed Flexo Printing Machine is often due to worn anilox rollers (cells clogged or damaged in the middle vs. edges), incorrect nip pressure between plate and impression cylinder, or deflection of the print cylinder at high speed. Measure the anilox roller with a microscope – if cell volume varies >10%, replace it. Check that the impression pressure is equal left to right using a pressure gauge strip. Also, consider a crown‑ground impression cylinder to compensate for deflection. Fixing these gives uniform solid coverage and fine text across 800 mm web width.

Q: What is the maximum running speed I can realistically get from a 4 Colors High Speed Flexo Printing Machine for solvent inks?

A well-maintained 4 Colors High Speed Flexo Printing Machine with solvent inks can reach 250–300 m/min for simple line work and solids, but for halftones or fine screens, 180–200 m/min is more realistic to avoid dot gain and drying issues. To push speed, ensure your dryer has at least 6 kW per color station, use low-viscosity solvent inks (Zahn cup #3 at 18–20 sec), and keep the anilox volume between 3.5–5.0 BCM. At 250 m/min, inspect the rewound roll for solvent trapping – slow cooling rollers may be needed.

Q: How often should I replace doctor blades on a 4 Colors High Speed Flexo Printing Machine?

On a 4 Colors High Speed Flexo Printing Machine, doctor blades typically last 8–16 hours of continuous running, depending on ink abrasiveness and anilox line count. For ceramic anilox rollers (400+ lpi), steel blades may wear faster – switch to polymer or ceramic‑tipped blades to reach 24 hours. Always check for blade chipping or uneven wear every shift; worn blades cause streaking and scratching. Using a blade with 45° bevel and lubricating the chamber with a compatible solvent can double blade life. Keep spares ready to avoid unplanned downtime.

Q: Can I retrofit a used 4 Colors High Speed Flexo Printing Machine with servo drives for better register?

Yes, retrofitting an older 4 Colors High Speed Flexo Printing Machine with independent servo motors on each print station and a master PLC is technically feasible. It improves register accuracy from ±0.3 mm to ±0.05 mm and reduces setup time by 70%. However, the cost ($25k–$40k) may approach half of a new entry‑level machine. Also ensure the frame and bearings can handle higher acceleration. Many retrofit kits include touchscreen control and automatic tension feedback. If your press is less than 10 years old, the upgrade is worthwhile; otherwise, consider trading in for a factory‑servo model.
