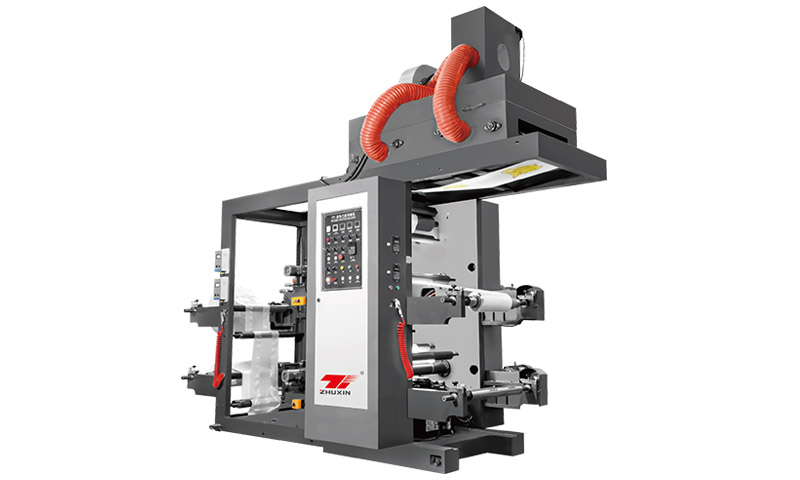

2 Colors High Speed Flexo Printing Machine

Q: Why does my 2 Colors High Speed Flexo Printing Machine cause frequent misregistration between the two colors?

Misregistration on a 2 Colors High Speed Flexo Printing Machine often stems from worn tension rollers, incorrect plate mounting, or loose gears in the print cylinder drive. First, check that the web tension is consistent – a variance over 5% will shift the second color. Second, verify that both printing plates are mounted exactly at the same circumferential position using a digital plate mounter. Third, inspect the gear backlash between the two printing stations; replace any worn gears. Regular calibration with a strobe light can catch dynamic misregistration at full speed. Solving these issues keeps your two-color press running at 200 m/min with ±0.1 mm accuracy.

Q: How can I reduce ink drying time on my 2 Colors High Speed Flexo Printing Machine without slowing down production?

On a 2 Colors High Speed Flexo Printing Machine, slow drying at high speed usually means your drying system is underpowered or airflow is blocked. Upgrade to a hot-air knife dryer with adjustable temperature (40–80°C) and high-velocity nozzles directed immediately after each color station. Use faster-solvent or UV inks compatible with your press. Also reduce ink film thickness by switching to a finer anilox roller (e.g., 300–400 lpi). These changes can cut drying time by 50%, allowing the press to run at 250 m/min without smearing or set-off.

Q: What is the typical payback period when upgrading to a new 2 Colors High Speed Flexo Printing Machine?

A modern 2 Colors High Speed Flexo Printing Machine typically pays for itself within 12–18 months for a medium-volume label or bag printer. Compared to older 2-color presses, a high-speed model boosts output from 80 m/min to 250 m/min – that‘s 3× more production per shift. Lower waste (reduced from 8% to 3%) and 30% less power consumption due to servo drives further accelerate ROI. For a shop running 8 hours/day, the increased throughput alone can generate an extra $50,000–$80,000 annual profit, making the investment highly cost-effective.

Q: My 2 Colors High Speed Flexo Printing Machine often stops due to web breaks. What are the main causes?

Web breaks on a 2 Colors High Speed Flexo Printing Machine usually happen at the infeed nip, between color stations, or at the rewind. Common causes: (1) excessive tension above 2.5 N/mm for thin films, (2) damaged or misaligned idler rollers creating edge wrinkles, (3) static buildup that causes film to stick to rollers – install static eliminators, (4) poor splice quality on the roll stock. Reduce tension by 15–20%, check roller parallelism, and add a web break sensor that stops the press instantly. Keeping the press clean of dried ink also prevents sticking and snapping.

Q: Can a 2 Colors High Speed Flexo Printing Machine print on both paper and PE film without changing major parts?

Yes, a versatile 2 Colors High Speed Flexo Printing Machine can switch between paper (40–120 gsm) and PE film (25–80 microns) using the same print cylinders but different anilox rollers and ink types. For paper, use 250–300 lpi anilox with water-based inks; for PE film, go to 350–400 lpi anilox with solvent or UV inks. You‘ll also need to adjust nip pressure and dryer temperature. Many modern 2‑color high‑speed presses come with quick‑change anilox sleeves and digital pressure settings, allowing changeover in under 15 minutes without tools.
